Butom

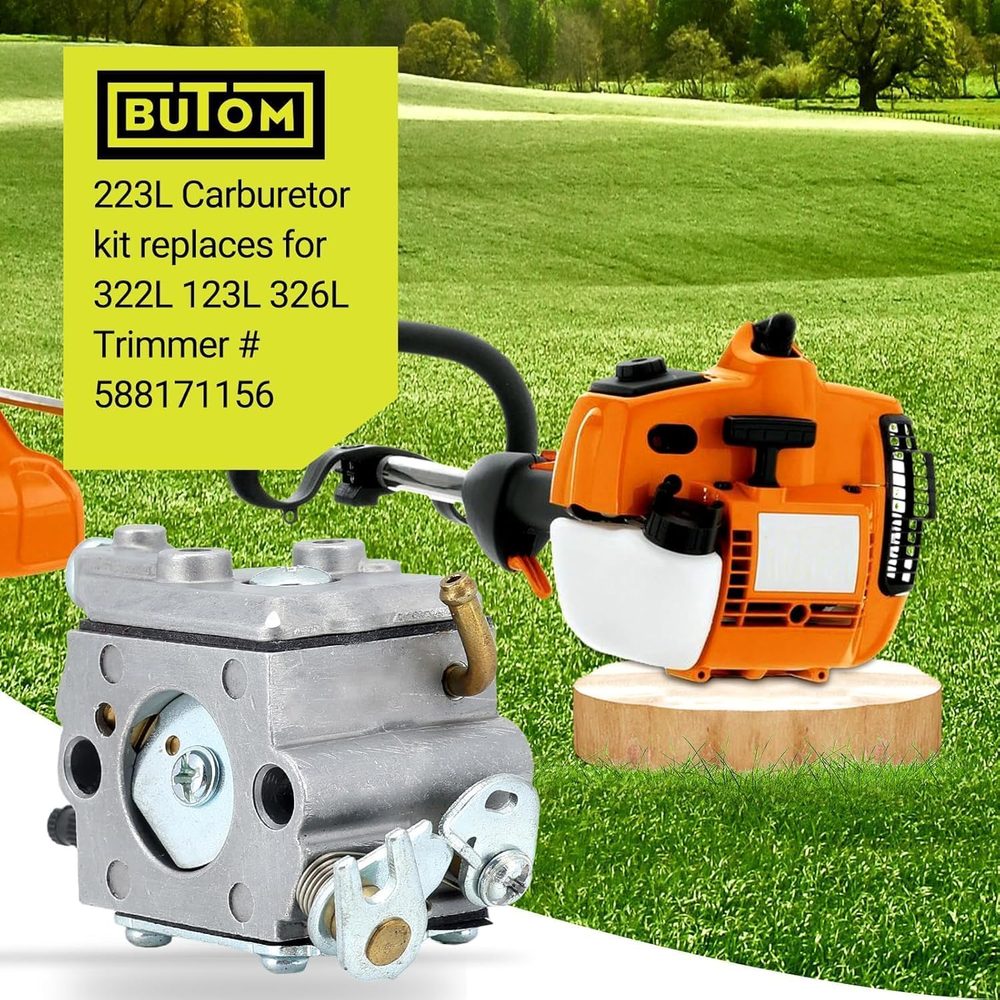

C1Q-EL24 Carburetor Kit for Husqvarna 123L–327

Trimmers · Carburetors

Butom C1Q-EL24 Carburetor Kit for Husqvarna 123L–327

4.4 out of 5 · 435 reviews

Carb and tune-up kit for Husqvarna 123, 223, 323, 325 and 326 trimmers.

$17.99at last check, Sep 27, 2026

Fits

  • 123L
  • 223L
  • 323L
  • 325LX
  • 326LS
  • 327RX
  • 322C

Replaces

  • C1Q-EL24
  • C1Q-EL24A
  • 588171156
  • 503283401
  • 503283111

About this part

Husqvarna's 123 to 327 trimmers and brushcutters share the C1Q-EL24 carburetor, and this kit has everything around it too: primer pump, tank grommets, two lengths of fuel line, a fuel filter, a plug and gaskets.

It even includes the carb adjustment tool, which you need for the splined screws on these engines. The body is anodised aluminium with brass parts and rubber diaphragms.

  • Replaces C1Q-EL24 and 503283401
  • Fits Husqvarna 123 to 327 trimmers
  • Includes adjustment tool and tank grommets
  • 31 mm mount, 14 mm throttle

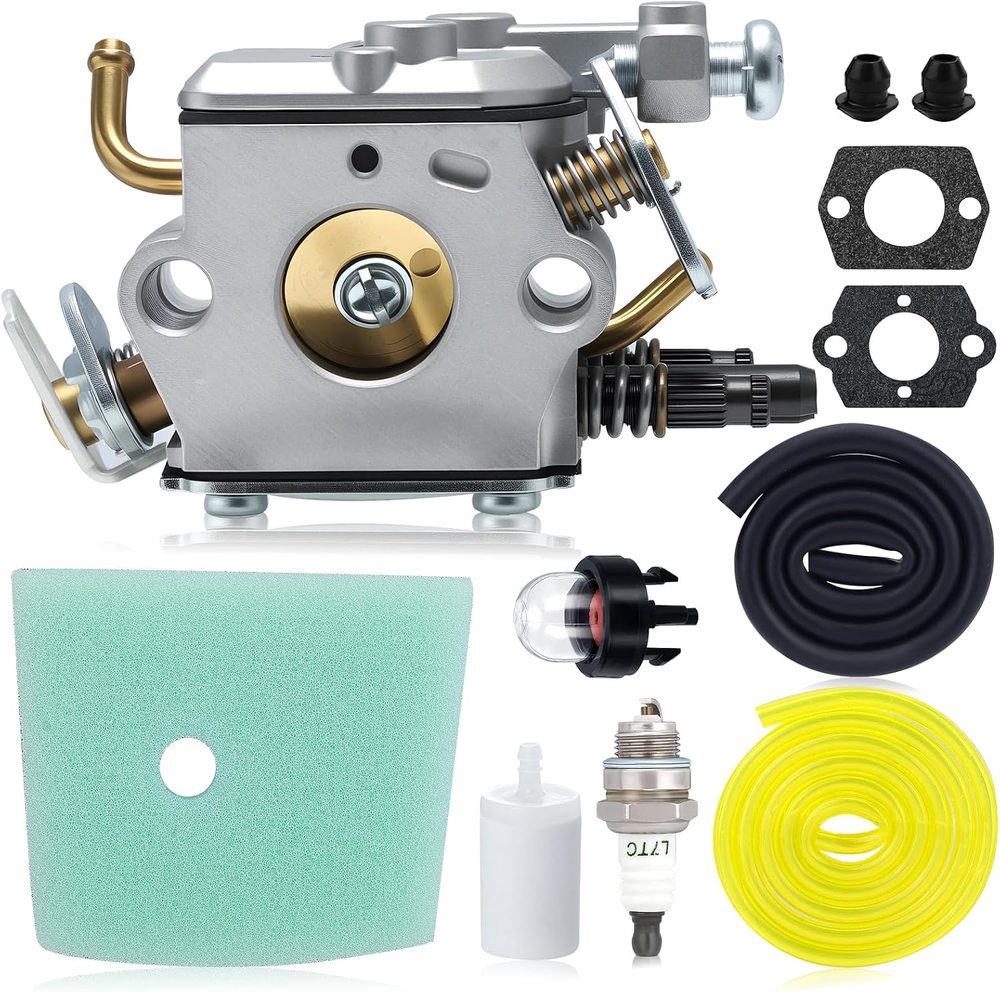

In the box
  • Carburetor
  • Air filter
  • Primer pump
  • 2 tank grommets
  • Fuel filter
  • 2 fuel lines
  • Spark plug
  • 2 gaskets
  • Adjustment tool

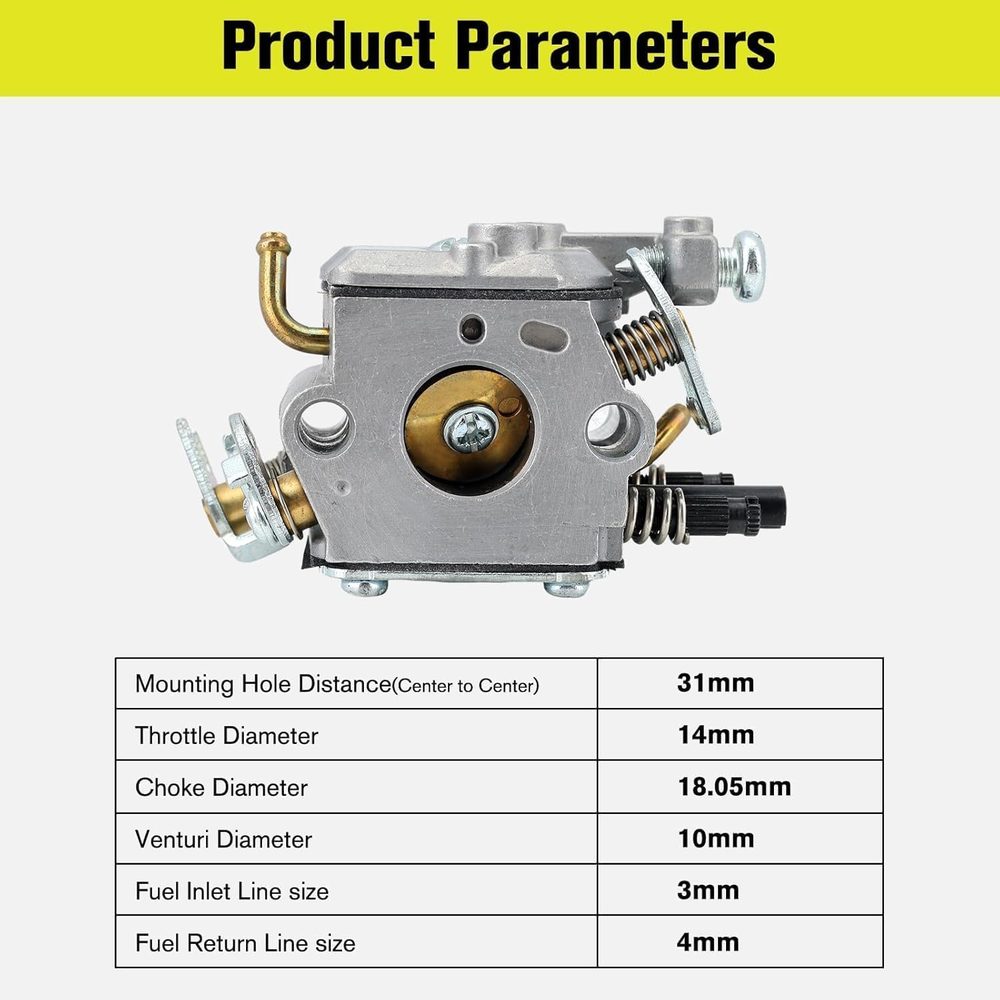

Specs
Mount holes31 mm
Throttle14 mm
Choke18.05 mm
Fuel inlet3 mm
Before you order

Compare the stamp on your old part with the “Replaces” list, and your engine code with “Fits”. If it still isn't clear, send a photo to the counter and we'll check it for you.
